Anti-Vibration Products

Traction System Components

Our rubber-to-metal bonded traction components are engineered to accommodate and control the traction, braking and dynamic forces transmitted between the traction motor, gearbox, bogie frame and wheelset. These components provide controlled flexibility while helping isolate vibration, shock and noise within the traction system.
Manufactured using high-performance elastomers and precision-bonded metal elements, they offer high fatigue resistance, controlled stiffness, durability and reliable performance under repeated traction and braking loads.

Traction System Products

Explore our range of traction system components designed to support efficient force transmission, controlled movement, vibration isolation and reliable performance across demanding railway applications.

Ball Joint Traction Lever

High-performance ball joint connecting the traction lever to the bogie, enabling precise and smooth power transmission with enhanced durability.

Application: Passenger Coach – LHB Coach

Motor Suspension Bush

The motor suspension bush in a traction motor dampens and isolates vibrations, reducing noise and protecting other bogie components from wear and tear. It ensures proper alignment and stability of the motor, preventing excessive movement or misalignment. By minimizing stress and fatigue, it extends the lifespan of the motor and related components.

Application: Vande Bharat (Train 18)

Motor Suspension Pad

The motor suspension pad in a traction motor isolates vibrations, reducing noise and preventing their impact on other components, improving ride comfort. It absorbs shocks from track irregularities or abrupt movements, protecting the motor and bogie from damage. Additionally, it distributes loads evenly, reducing stress on components and enhancing their durability and lifespan.
Application: Vande Bharat (Train 18)

Traction Rod Assembly

The traction rod assembly with a spherical bearing transmits traction and braking forces between the bogie and wheelsets, enabling propulsion and deceleration. The spherical bearing allows for articulation and misalignment, ensuring efficient power transfer while accommodating track variations and curves. It enhances stability, reduces stress on components, and improves ride quality by maintaining proper alignment and minimizing wear.
Application: Vande Bharat (Train 18)

Spheribloc

In the WAP7/WAG9 electric locomotive, spheriblocs are used to provide longitudinal guidance for the axle box housing while allowing controlled lateral movement, ensuring smooth operation of the axle guide rods. They are also fitted at both ends of the torque arm to support the traction motor mounting plate and connect the traction motor support arm to the bogie frame and center transom mounting lug, ensuring stability and vibration damping.

Application: Locomotives

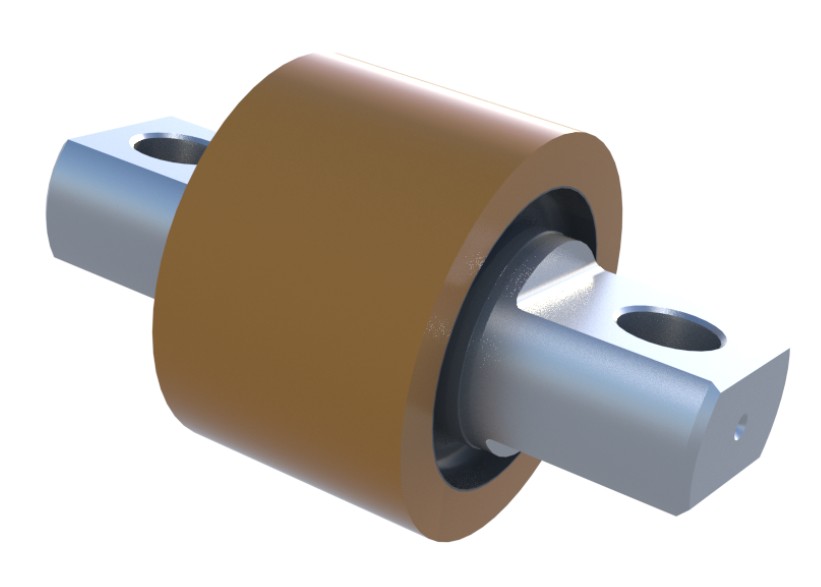

IA016-00003 Spheribloc

dummy

Application: Locomotives

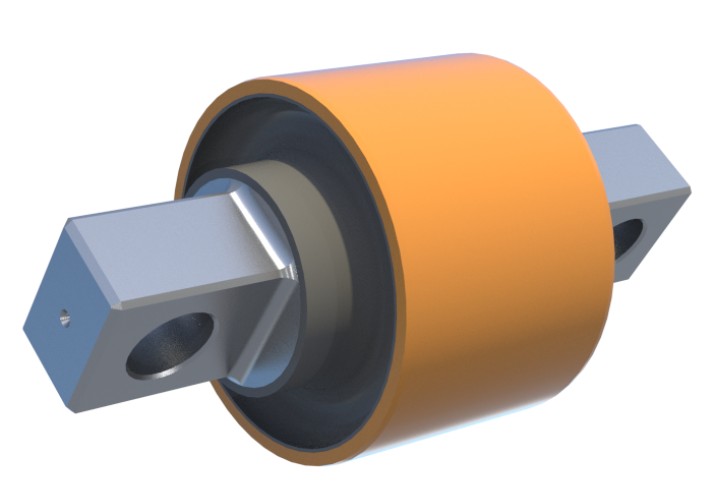

IA016-00269 Spheribloc

dummy

Application: Locomotives
